Introduction

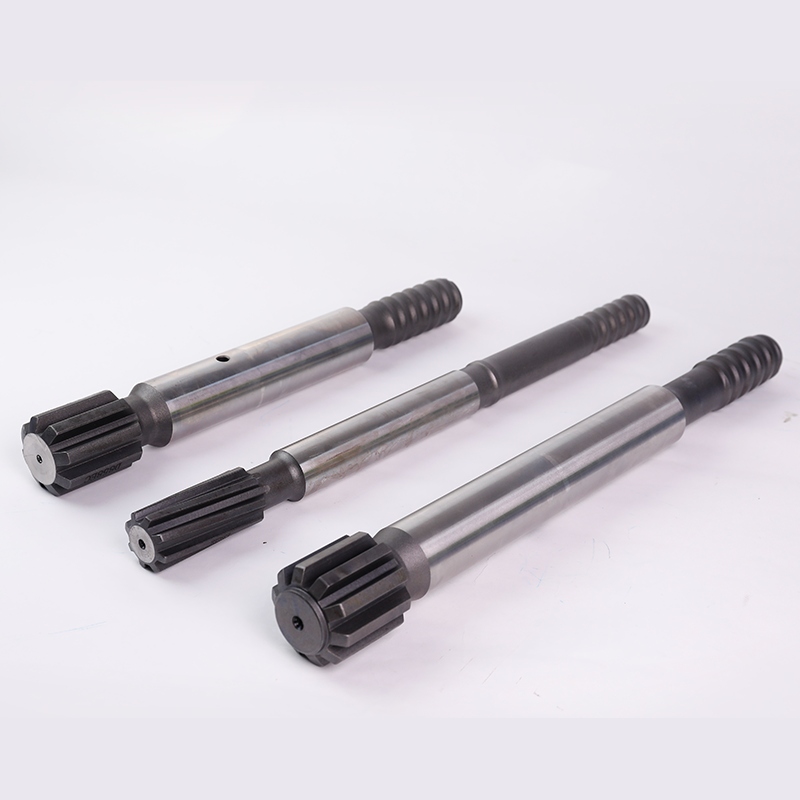

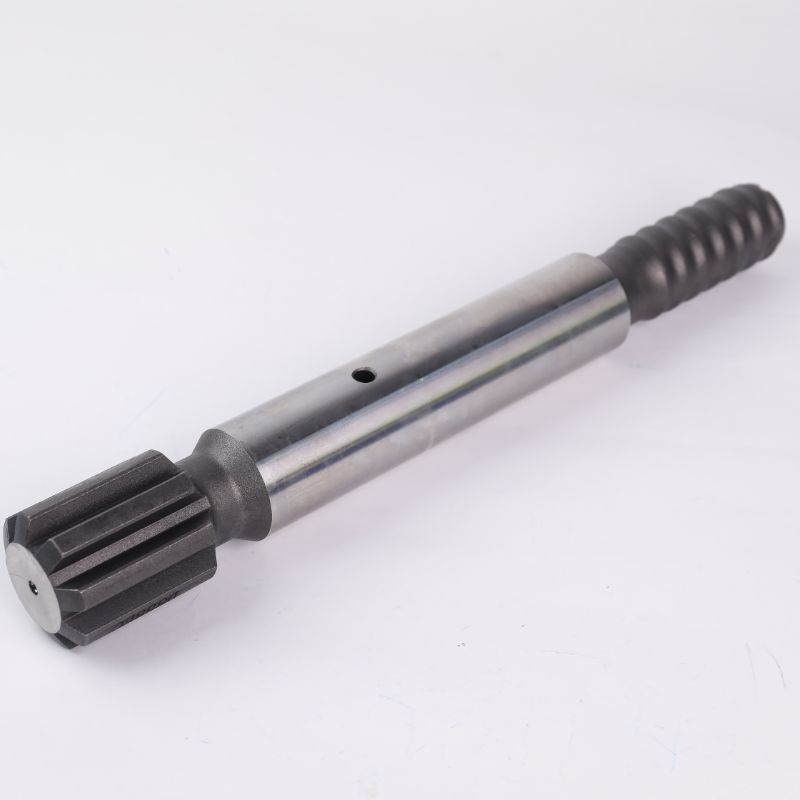

The shank adapter is a component that connects one end to the rock drill and the other end to the drill rod. Its primary function is to directly bear the impact energy and torque from the rock drill. During the drilling process, the shank adapter transfers the energy from the rock drill to the drill rod and drill bit, enabling the rock to be fractured.

The specifications of the shank adapter have a significant impact on the drilling speed, the service life of the rock drill, and the rock drilling tools. Therefore, when selecting and using shank adapters, it is important to match them properly with the specific operating conditions and the model of the rock drill.

Talk to us Send Message

Types of Shank Adapters

Currently, there are over 200 models of rock drilling machines, each requiring different types of shank adapters based on the machine's design.


Rock Drill Brand Rock Drill Model Thread Type
Atlas Copco BBC 43, BBC 44, BBC 45, BBC 100, BBC 51, BBC 52, BBC 54, BBC 120, BBC 57, COP 125, COP 130, COP 131, COP 1032HD, COP 1032, COP 1036, COP 1038HB, COP 1038HD, COP 1238, COP 1038HL, COP 1432, COP 1532, COP 1440, COP 1838HD, COP 1838 ME, COP 1550, COP1838ME/HE, COP 1550 E×, COP 1838 E×, COP 1840HE, COP 1850, COP 2150PG, COP 2160E×, COP 4050E×, COP 4050MU×   R32, R35, T38, T45, T51, ST68
Boart HD 125, HD 150, HD 160, R38, T38
Furukawa M 120, PD 200, PD 200R, HD 260, HD 300, HD 609, HD 612, HD 712 R32, R38, T38, T45
Gardner—Denver PR 123 R32, R38, T38, T45
Ingersoll—Rand URD475, URD550, VL120, EVL130, VL140, F16, YH 65, YH 80, YH 65 RP, YH 70 RP, YH 75 RP, YH80 RP, R32, R38, T38, T45
Montabert HC 40, HC 80, HC 90, HC 105, HC 150, HC 80R, HC 120R, HC 150R, HC 120, R32, R38, T38, T45, T51, T60
SIG HBM 50, HBM 100, HBM 120, HBM 101 R32, R38
Sandvik (Tamrock) HL 300, HL 300S, HL×3, HL×3F, L400, L410, L500, L510, L550, HL 438, HL 538, HLR 438L, HLR 438T, HL 438LS,
HL 438TS, HL 538, HL 538L, L 550S, HL 500-38, HL 510-38, HL 500-45, HL 510-45, HL 500S-38, HL 510S-38, HL 510B, HL 510HL, HL 500F, HL 510F, HL 550 SUPER, HL 560 SUPER, HL 51OS-45, HL× 5,
HL× 5T, HL×5 PE-45, HL 600-45, HL 600S-45, HL 600-52, HL 600S-52, HL 645, HL 645S, HL 650-45, HL 700-45, HL 700T-45, HL 710-45, HL 800T-45, HL 650-52, HL 700-52, HL 710-52, HL 800T-52, HL 1000-52, HL 1000S-52, HL 1000-60, HL 1000-80, HL 1000S-80, HL 1000PE-52, HL 1000 PE-65, HL 1500 PE-65, HL 1560 T-65, HL 1500-52, HL 1500T-52		 R32, R38, T38, T45, T51, T60, ST58, ST68, HL64

More Parameters

The thread sizes of the shank adapters we provide are: R28, R32, R35, R38, T38, T45, and T51. There are more than 200 kinds of rock drilling machines of various types, and different types of rock drilling machines need to choose different shank adapters.



- Rock Drill Thread Length
(mm)		 Weight
(kg)		 Flushing Hole
(mm)
Atlas Copco
BBC 43,
BBC 44,
BBC 45,
BBC 100		 R32 380  2.2  10
Atlas Copco
BBC 51,
BBC 52,
BBC 54,
BBC 120		 R32
T38		 380
390		 2.9
3.4		 10
10
Atlas Copco
BBC 57		 T38 538  5.6  14
Atlas Copco
COP 125,
COP 130,
COP 131		 T38 380  3.3  14
Atlas Copco
COP 1032HD		 R32
T38		 340
340		 3.7
4.4		 —
—
Atlas Copco
COP 1032		 R32
R35
R38
T38		 550
550
550
550		 5.3
5.6
5.7
5.7		 —
—
—
—
Atlas Copco
COP 1036
COP 1038HB		 R32
T38
T45		 550
550
550		 4.3
4.7
5.3		 —
—
—
Atlas Copco
COP 1038HD
COP 1238		 R32
R38
T38		 485
485
485		 4.3
4.5
4.5		 —
—
—
Atlas Copco
COP 1038HL		 R32
T38
T45		 575
575
575		 4.9
5.2
6.1		 —
—
—
Atlas Copco
COP 1238		 R32 500 4.0 —
T38 500 4.4 —
R38 485 4.2 —
T38 485 4.2
T45 500 5.0 —
R32 575 4.9
R38 575 5.0 —
T38 575 5.2
T38 575 5.7
T45 575 6.1 —
Atlas Copco
COP 1432
COP 1532,
COP 1440,
COP 1838 HD, COP 1838 ME		 R32 435 3.9 —
R38 435 4.2 —
T38 435 4.2
R32 525 4.8 —
T38 525 5.0
Atlas Copco
COP 1432，
COP 1532		 R32 341 4.7 —
R38 341 5.2
Atlas Copco
COP 1550，
COP 1838ME/HE		 T38 525 6.2 —
T45 525 6.4 —
T51 525 6.8
- Rock Drill Thread Length
(mm)		 Weight
(kg)		 Flushing Hole
(mm)
Atlas Copco
COP 1550 E×,
COP 1838 E×		 T38 730  10.1  —
T45 730  10.5  —
T51 730  10.7  —
Atlas Copco
COP 1840HE
COP 1850		 T45 565  7.2  —
T51 565  7.4  —
Atlas Copco
COP 2150PG		 T51 770  11.2  —
Atlas Copco
COP 2160E×		 T45 770  13.2  —
T51 770  13.3  —
Atlas Copco
COP 4050E×		 ST68 805  69.6  —
Atlas Copco
COP 4050MU×		 ST68 835  69.9  —
Boart
HD 125,
HD 150,
HD 160		 R38 495  5.6  —
T38 495  5.6  —
Furukawa
M 120,
PD 200		 R32 330  3.6  14.3
R38 350  3.8  14.3
T38 380  4.0  14.3
T38 446  4.3  14.3
Furukawa
PD 200R		 T38 484  4.0  14.3
T45 484  4.3  14.3
Furukawa
HD 260,
HD 300		 T38 655  7.8  16.0
T45 655  7.8  16.0
- Rock Drill Thread Length
(mm)		 Weight
(kg)		 Flushing Hole
(mm)
Furukawa
HD 609		 T38 620  6.2  —
T38 690  6.5  —
T45 620  6.9  —
Furukawa
HD 612		 T45 710 9.2 —
Furukawa
HD 712		 T45 788  11.2  —
Gardner-Denver
PR 123		 R32 380  3.6  14.3
R38 380  3.9  14.3
T38 380  3.9  14.3
T45 380  4.2  14.3
 Ingersoll-Rand
URD475,
URD550,
VL120,
EVL130,
VL140,
F16

 		 R32 330  3.6  14
R38 350  3.8  14
T38 380  4.0  14
T38 446  4.3  14
 Ingersoll-Rand
YH 65,
YH 80		 T38 500  5.8  19
T45 500  6.1  19
 Ingersoll-Rand
YH 65 RP,
YH 70 RP,
YH 75 RP,
YH80 RP,		 T45 700  8.0  19
Montabert
HC 40		 R32 447  3.9  —
R38 447  4.1  —
T38 447  4.1  —
Montabert
HC 40		 R32 270  4.1  —
R38 320  4.4  —
- Rock Drill Thread Length
(mm)		 Weight
(kg)		 Flushing Hole
(mm)
Tamrock
HL 300		 R32 400 2.8 —
Tamrock
HL 300S		 R32 245 2.8 —
Tamrock
HL×3		 R32 324 3.8 —
Tamrock
HL×3F		 R32 205 2.6 —
Tamrock
L400,
L410,
L500,
L510,
L550		 R32 380 2.3 10
Tamrock
HL 438,
HL 538,
HLR 438L,
HLR 438T		 R32 380 3.2 12.7
T38 400 3.6 12.7
Tamrock
HL 438LS,
HL 438TS,
HL 538,
HL 538L,
L 550S		 R32 450  4.1  —
R38 450  4.3  —
T38 455  4.3  —
T38 545  4.8  —
Tamrock
HL 500-38,
HL 510-38		 R32 550  4.3  —
T38 550  4.6  —
Tamrock
HL 500-45,
HL 510-45		 R32 550  5.6  —
T38 550  5.6  —
T45 550  6.1  —
Tamrock
HL 500S-38,
HL 510S-38,
HL 510B,
HL 510HL		 R32 460 3.9 —
R38 460 4.1 —
T38 460 4.1 —
R38 500 4.3 —
T38 500 4.3 —
Tamrock
HL 500F,
HL 510F		 R32 350 3.6 —
Tamrock
HL 550 SUPER,
HL 560 SUPER,
HL 51OS-45		 R38 500  5.5  —
T38 500  5.5  —
T45 500  5.6  —
Tamrock
HL× 5,
HL× 5T		 R32 500  5.4  —
R38 500  5.5  —
T38 500  5.5  —
R32 575  6.4  —
T38 575  6.5  —
T45 575  6.6  —
Tamrock
HL×5 PE-45		 R32 575  6.3  —
T38 575  6.4  —
Tamrock
HL 600-45,
HL 600S-45		 T38 600  6.7  —
T45 600  6.7  —
R32 525  5.9  —
T38 525  6.0  —
T45 525  6.1  —
Tamrock
HL 600-52,
HL 600S-52		 T45 650  8.0  —
T51 650  8.0  —
Tamrock
HL 645,
HL 645S		 T38 600  6.6  —
T45 600  6.8  —
Tamrock
HL 650-45,
HL 700-45,
HL 700T-45,
HL 710-45,
HL 800T-45		 T38 600  7.3  —
T45 600  7.8  —
Tamrock
HL 650-52,
HL 700-52,
HL 710-52,
HL 800T-52		 T38 600  8.3  —
T45 600  8.8  —
T51 600  8.8  —
Tamrock
HL 850
HL 850S		 T45 670  9.8  —
T51 670  10.1  —
Tamrock
HL 1000-52
HL 1000S-52		 T45 670  10.3  —
T51 670  11.0  —
T45 590  8.7  —
T51 590  8.7  —
Tamrock
HL 1000-60		 T51 670  13.3  —
T60 670  13.4  —
Tamrock
HL 1000-80		 T60 670  20.9  —
Tamrock
HL 1000S-80		 ST58 635  18.2  —
ST68 640  19.1  —
Tamrock
HL 1000PE-52		 T51 840  14.2  —
Tamrock
HL 1000 PE-65
HL 1500 PE-65
HL 1560 T-65		 T51 760  16.8  —
T60 760  16.9  —
Tamrock
HL 1500-52
HL 1500T-52		 T51 710  11.9  —

Can't find the parameters you want? Please get in touch with us!

Download Brochure

Advantages



Premium Material Selection

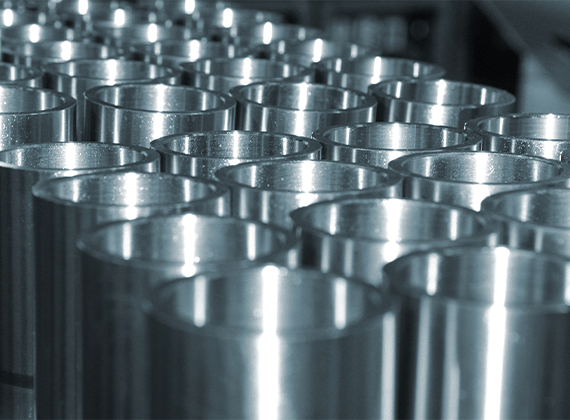

Our shank adapters are made from high-quality steel, known for their high strength, toughness, wear resistance, and corrosion resistance, ensuring excellent performance even in harsh working conditions.





Precision Manufacturing

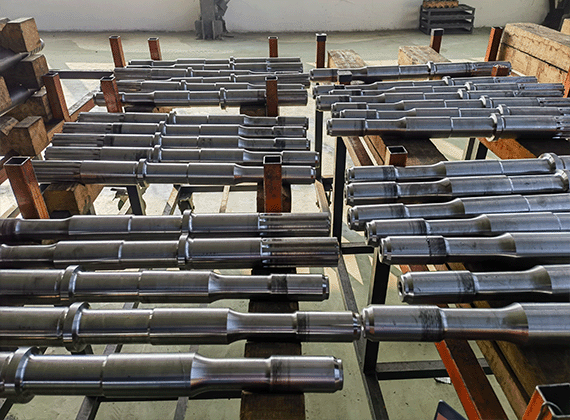

·We utilize advanced CNC machining equipment and processes to ensure every detail of the shank adapter is meticulously crafted.

·The end face of the shank adapter is smooth and flat, with the cross-section perpendicular to the axis. The fit gap between the shank adapter and the rock drill sleeve is controlled within 0.5mm, ensuring stability and efficiency during the drilling process.

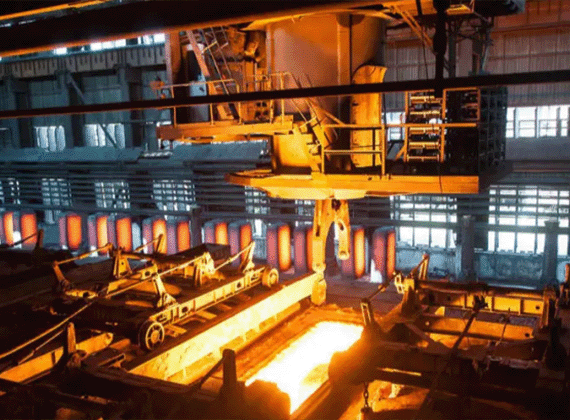

Advanced Heat Treatment



·Our shank adapters undergo advanced heat treatment techniques to ensure they have the proper hardness and toughness after processing.

·The hardness of the shank adapter is generally controlled between HRC 38–45, ensuring a balance between durability and preventing damage to the rock drill piston.

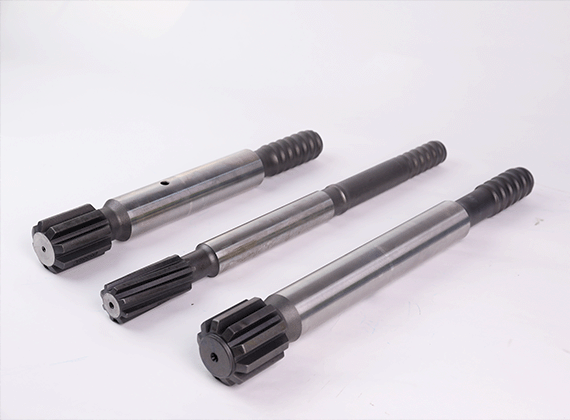

Variety of Specifications

·We offer a wide range of specifications and models for our shank adapters to meet the needs of different rock drills and working environments.

·Customers can choose the appropriate shank adapter based on their specific requirements, ensuring optimal drilling efficiency and operation quality.

Factors to Consider
When Choosing Shank Adapters


140x140

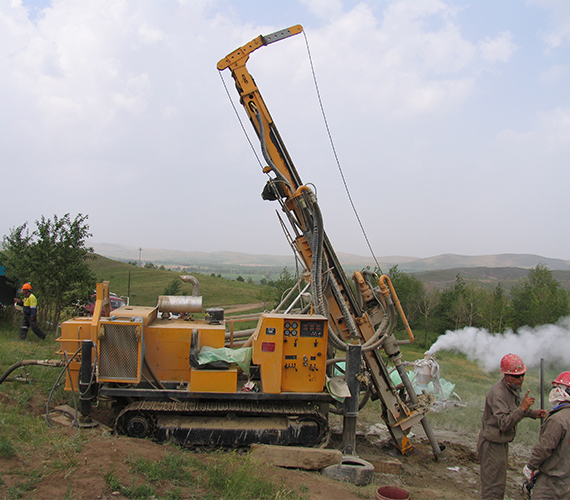

Rock Drill Model and Specifications

· Rock Drill Model Match

The shank adapter must be chosen according to the rock drill's model and specifications to maximize the machine's performance and efficiency.



· Power and Torque

The power and torque of the rock drill determine the strength and size of the shank adapter required. Ensure that the selected shank can withstand the impact and torque produced by the rock drill.



· Interface Size

Pay attention to the connection method (e.g., threaded, quick-connect) and interface size of the shank to ensure secure and reliable connections with the rock drill and drill rod.

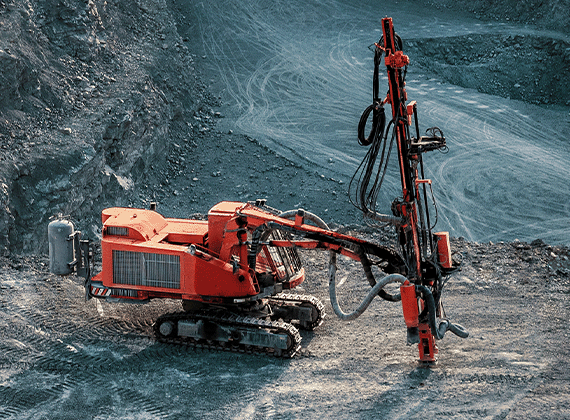

Working Environment and Operational Requirements

· Rock Hardness

Choose a shank adapter with appropriate hardness and wear resistance based on the hardness of the rock at the work site.



· Drilling Depth

For deep-hole operations, a higher-strength shank may be required.



· Working Environment

Consider environmental factors such as humidity, temperature, and corrosion when selecting a shank with the necessary protective features.

140x140

140x140

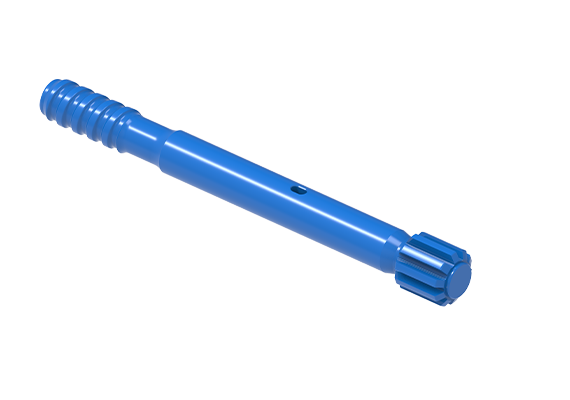

Water Supply Method and Structural Features

· Water Supply Method

Select the appropriate shank based on the rock drill's water supply method (e.g., central water supply, side water supply).



· Structural Features

Based on the structural characteristics of the shank (e.g., two-wing, three-wing, four-wing), choose the model that suits the rock drill and operational needs.
