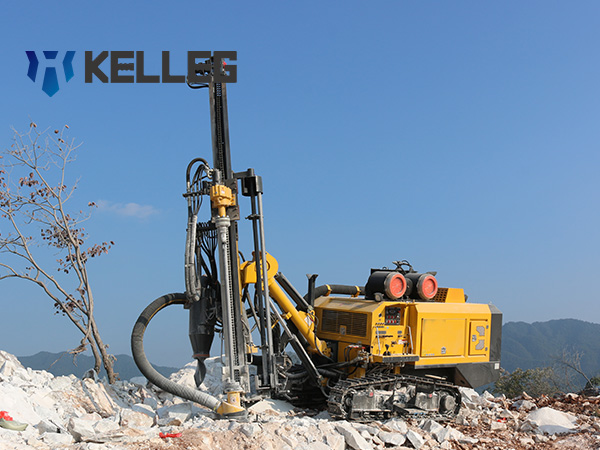

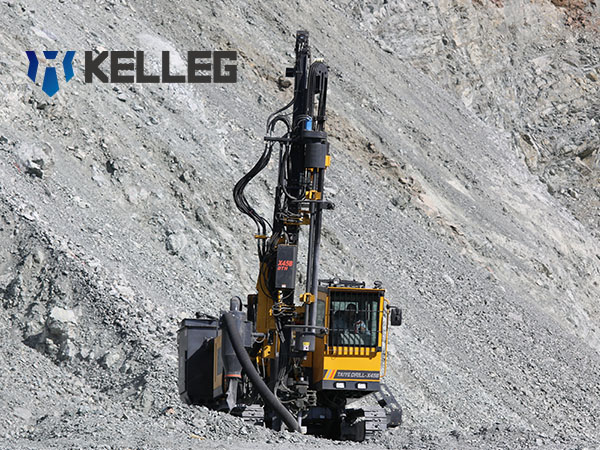

DTH drilling is essential for sectors from mineral exploration to geothermal energy. Its superior performance comes from the synchronized operation of a specialized tool assembly. For professionals aiming to minimize cost-per-meter and maximize uptime, a deep, practical understanding of each component—its function, variants, and selection criteria—is indispensable. This comprehensive guide delves into the details beyond the basics.

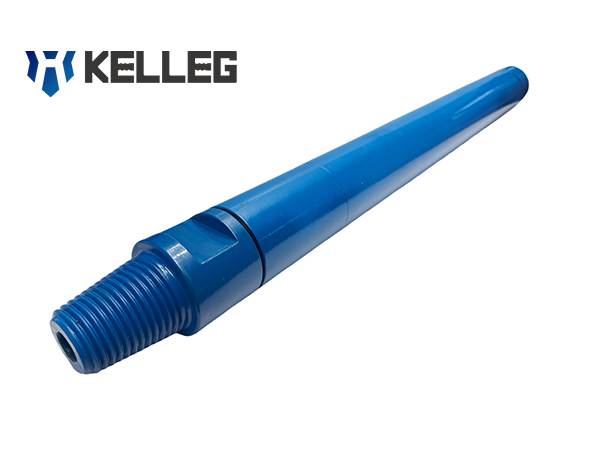

1. DTH Hammer
The DTH Hammer is the core of the system, a sophisticated pneumatic or hydraulic engine that generates the percussive force required to fracture rock.
1.1 Core Function
It operates by channeling high-pressure air or fluid to drive a piston within a closed chamber. This piston accelerates downward and strikes the top of the DTH bit, transmitting a direct, high-energy shockwave into the rock with minimal energy loss up the drill string.
1.2 Model Classification
By Operating Pressure
- Low-Pressure Models (0.7–1.4 MPa / 100–200 psi): Ideal for soft, non-abrasive formations like shale, limestone, and soft sandstone. They are more cost-effective and require smaller air compressors.
- Medium-Pressure Models (1.4–2.4 MPa / 200–350 psi): The workhorses of the industry are suitable for a wide range of medium to hard rock types, including granite, basalt, and hard limestone. They offer an optimal balance between performance and operating cost.
- High-Pressure Models (2.4–3.5+ MPa / 350–500+ psi): Engineered for the most challenging conditions: extremely hard, abrasive, and fractured formations like taconite, quartzite, and highly metamorphosed rock. They deliver higher impact energy but require more powerful and expensive compressors.
By Internal Valve Design
- Valved Hammers: Utilize a separate, often ring-shaped valve to direct air to the top and bottom of the piston. While highly reliable and consistent, they can have higher air consumption and are more complex to service.
- Valveless Hammers: The modern standard. They use the piston’s own movement to open and close ports for airflow. Benefits include simpler construction, reduced part count, lower air consumption, and generally higher impact frequency, resulting in faster penetration rates in many formations.
1.3 Performance Metrics
When selecting a hammer, key specifications include Impact Energy (per blow, in ft-lbs or Joules), Blow Frequency (blows per minute), and Air Consumption (CFM or m³/min). A high-energy, lower-frequency hammer may be better for hard, brittle rock, while a high-frequency hammer can excel in softer, more plastic formations.

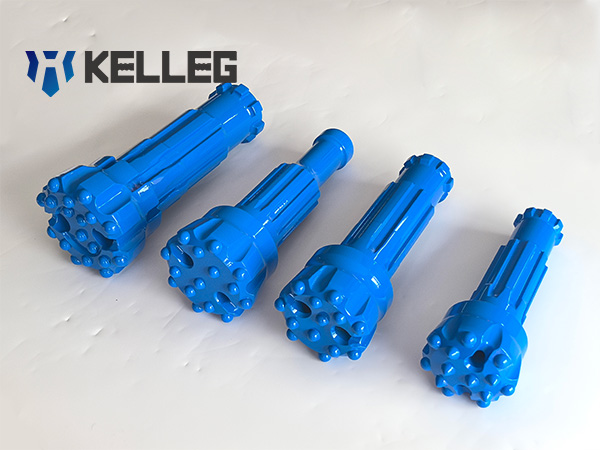

2. DTH Bit
The bit is the consumable interface between the drilling system and the rock. Its design dictates drilling speed, borehole quality, and overall cost-effectiveness.
2.1 Function
The bit transforms the hammer’s impact energy and the drill string’s rotational force into a crushing and shearing action. Simultaneously, its design must facilitate the efficient removal of the resulting cuttings.
2.2 Model Classification
Carbide Insert Geometry
- Spherical Buttons: Highly wear-resistant and suitable for a broad spectrum of rock, from medium to extremely hard. They tend to produce more finely crushed cuttings.
- Ballistic Buttons: Features a pointed geometry that concentrates stress, enabling faster penetration in soft to medium-hard rock. They often produce larger chips. However, the pointed tip is more susceptible to breakage in hard, abrasive, or highly fractured ground.
- Wedge Buttons: Less common and highly specialized for very soft, non-abrasive formations, providing an aggressive ripping and shearing action.
Bit Body Profile
- Flat Profile: Maximizes stability and is preferred for small diameters and straight-hole drilling in hard rock.
- Parabolic Profile: The deep, curved flutes provide superior cuttings evacuation, reducing the risk of bit-balling (clogging) in sticky or fast-drilling formations. This is especially critical for larger hole sizes.
- Gauge Buttons: The outermost buttons on the bit are critical for maintaining hole diameter. These are often made of more wear-resistant carbide and may be strategically positioned or shaped (e.g., heel buttons) to protect the bit body from wear and ensure a clean, in-gauge hole.
2.3 Connection Types
While standard API threads are common, spline connections are increasingly used in high-torque applications because they distribute load more evenly and are less prone to thread galling or failure.

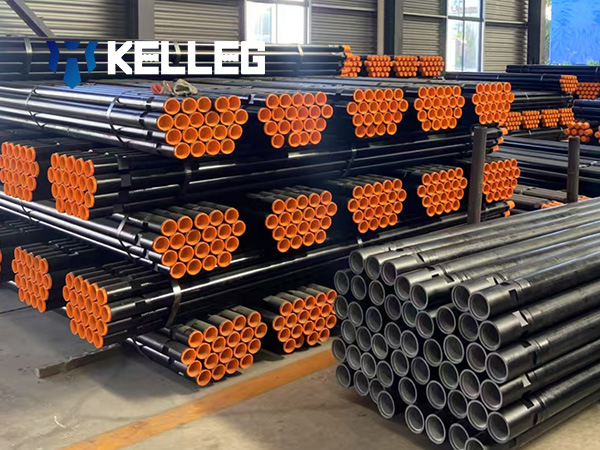

3. Drill Pipe
Often overlooked, the drill pipe is a high-precision component that must withstand immense dynamic loads.
3.1 Functions
It serves multiple roles: a conduit for air, a transmitter of rotation and thrust, and a structural column suspended in the hole.
3.2 Specifications
Steel Grade and Heat Treatment
Premium drill pipes are made from alloys like AISI 4145H and undergo controlled quenching and tempering. This process creates a tough, ductile core to absorb shock and a hard, wear-resistant surface.
Thread Technology
Thread connections are typically the most vulnerable points in the drill string. Advanced proprietary threads feature:
- Optimized Taper and Pitch for even load distribution.
- Robust Root Radius to reduce stress concentration and prevent cracking.
- Advanced Sealing Surfaces, such as metal-to-metal seals or integrated O-rings that outperform traditional thread compounds, ensuring full pressure integrity.
Upset Forging
The pipe ends are often hot-forged to create a larger cross-sectional area for threading, significantly increasing joint strength compared to threading directly onto the pipe body.
4. Shank Adapters
These components create the vital link between the rotating drill pipe and the hammer.
4.1 Function
The shank adapter connects the top of the hammer to the first drill pipe. It is engineered to withstand the full impact of the hammer’s piston blows while transmitting rotation. Its seals are critical for preventing pressure loss.
4.2 Material
These components are subjected to severe cyclic loads and abrasive wear. They are typically forged from high-grade alloys and undergo specialized heat treatment processes such as induction hardening to achieve a hard, wear-resistant exterior with a tough, shock-absorbing interior.
5. Stabilizer
A stabilizer is a key tool for drill string control and hole quality.
5.1 Functions
- Centralization: Maintains the Bottom Hole Assembly (BHA) centered in the hole, promoting straight drilling and reducing deviation.
- Vibration Damping: Reduces harmful lateral vibrations that can damage threads, accelerate component wear, and fatigue the drill string.
- Hole Wall Support: In softer formations, it can help support the borehole wall, preventing cavings and ensuring a clean passage for the hammer and bit.
5.2 Design Variants
Stabilizers can be integral (built onto a sub) or replaceable-sleeve types. The wear pads are made of hardened steel or tungsten carbide to withstand constant contact with the borehole wall.
Conclusion
Selecting DTH components is not about picking the best individual part but assembling the most synergistic system. A high-pressure hammer will be wasted on a bit designed for soft rock, and premium drill pipe can be compromised by a low-quality sub. Success is achieved by analyzing the rock formation and selecting a hammer that delivers the right energy, a bit with the optimal button design and profile, and a drill string with the strength and sealing capability to handle the required pressures and loads.
