Introduction
Hydraulic tunneling jumbos are essential drilling machines widely used in underground construction projects, including metro tunnels, hydropower stations, mining operations, and railway tunnels. Equipped with advanced hydraulic rock drills and multi-boom configurations, these jumbos deliver high drilling speed, precise hole positioning, and improved safety in complex geological conditions.
Choosing the right rock drilling tools for hydraulic tunneling jumbos is critical to achieving optimal performance. High-quality drill bits, drill rods, shank adapters, and coupling sleeves directly affect penetration rate, drilling accuracy, and tool life. The correct selection not only enhances productivity but also minimizes operational costs by reducing downtime, equipment wear, and energy consumption. In demanding tunneling environments, reliable drilling tools ensure stable performance, consistent hole quality, and overall project efficiency.
What Are Hydraulic Tunneling Jumbos?
Hydraulic tunneling jumbos are specialized drilling machines designed for underground construction projects, particularly for tunneling through hard rock formations. These machines use hydraulic power to operate multiple drilling booms simultaneously, allowing for efficient and precise drilling of blast holes or anchor holes in tunnel walls.
Key Components
- Drilling Booms: Multi-arm structures that hold and guide the rock drills, enabling accurate hole placement at various angles.
- Rock Drill: The core drilling unit, powered hydraulically to deliver high impact energy and rotation for efficient penetration.
- Control Systems: Advanced electronic or hydraulic control systems that allow operators to manage drilling speed, boom positioning, and angle adjustments with precision.
Advantages of Hydraulic Tunneling Jumbos
- High Drilling Speed: Hydraulic systems deliver consistent impact energy and rotation, allowing rapid penetration in hard rock.
- Precision: Multi-boom configurations and advanced controls enable accurate hole alignment and spacing, critical for safe blasting and tunnel stability.
- Safety: Hydraulic jumbos reduce manual labor in dangerous underground conditions, minimizing the risk of accidents and improving overall operational safety.
Hydraulic tunneling jumbos have become the standard choice for modern tunneling projects due to their combination of efficiency, accuracy, and safety, making them indispensable for large-scale underground construction.
Why the Right Rock Drilling Tools Matter
The performance of a hydraulic tunneling jumbo depends heavily on the quality and suitability of its rock drilling tools. Choosing the right tools is essential for maximizing efficiency, reducing costs, and ensuring consistent project outcomes.
Impact on Drilling Speed and Penetration Rate
High-quality drill bits, rods, and shank adapters directly influence penetration rates. Tools designed for specific rock hardness and formation types allow the jumbo to drill faster while maintaining stable performance, reducing overall project timelines.
Hole Accuracy, Tool Service Life, and Energy Efficiency
Precision-engineered drilling tools ensure straight, accurately spaced holes, which is critical for safe blasting and tunnel integrity. Properly matched tools also experience less wear and tear, extending their service life and reducing the frequency of replacements. Efficient tools minimize hydraulic energy consumption, optimizing operational costs.
Risks of Using Improper Tools
Using poorly suited or low-quality drilling tools can lead to multiple problems:
- Premature Wear and Breakage: Increased tool replacement costs.
- Lower Drilling Efficiency: Slower penetration rates and wasted energy.
- Higher Downtime: Frequent stops for tool maintenance or replacement.
- Hole Deviation: Compromised tunnel stability and increased rework.
Selecting the right rock drilling tools is not just a matter of equipment choice—it is a strategic decision that directly affects safety, productivity, and cost-efficiency in tunneling projects.
Rock Drilling Tools Used on Hydraulic Tunneling Jumbos

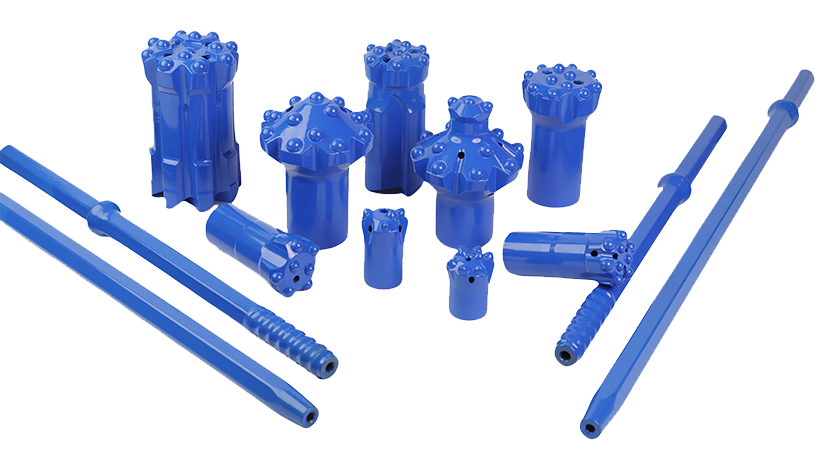

Top Hammer Rock Drill Bits
Top hammer rock drill bits are widely used in hydraulic tunneling jumbos for their high penetration efficiency in medium to hard rock formations.
- Threaded Button Bits: Common models include T38, T45, and T51.
- Suitable Rock Conditions: Medium to hard rock.
- Button Shapes: Spherical, ballistic, and semi-ballistic buttons, designed to balance penetration rate, durability, and hole stability.
These bits provide reliable performance in demanding tunneling environments, ensuring faster drilling and consistent hole quality.
Drill Rods
Drill rods transmit energy from the rock drill to the bit, making their selection critical for drilling efficiency and accuracy.
- Types: MF rods and extension rods.
- Functions: Maintain energy transmission, ensure straight holes, and allow extended drilling depth when used with extensions.
High-quality rods reduce vibrations, minimize wear, and help maintain consistent drilling performance.
Common models include R32/R28-H25-R25, R32-H28-R25/R28, T38/R38-H32-R32, and T38/R38-H35-R32 are mainly used.

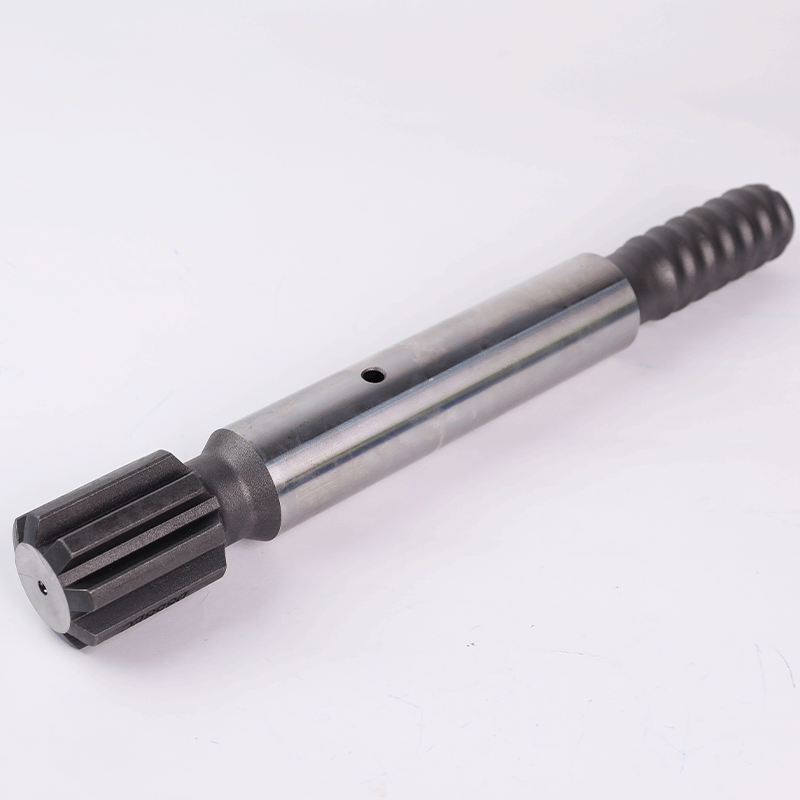

Shank Adapters
Shank adapters connect the rock drill to the drill rod and are essential for efficient energy transfer.
Importance: Material quality and heat treatment determine durability and resistance to wear and impact.
Choosing the right shank adapter prevents energy loss, reduces tool breakage, and improves overall drilling efficiency.

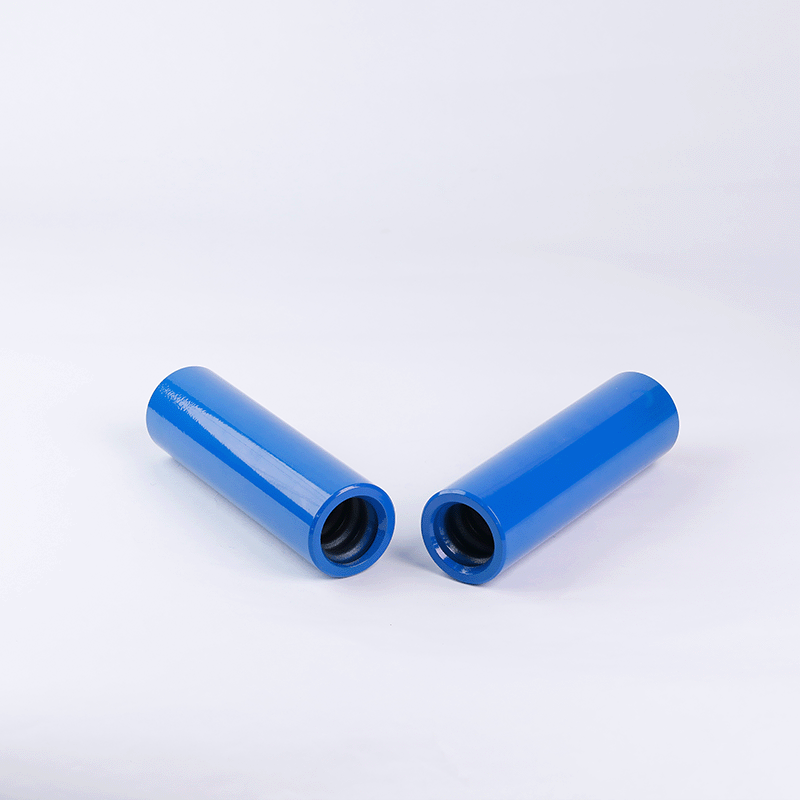

Coupling Sleeves
Coupling sleeves join drill rods together and play a critical role in maintaining hole alignment.
- Function: Securely connect drill rods while transmitting torque and impact energy.
- Types: Semi-bridge and full-bridge sleeves, each designed for specific drilling conditions and stress levels.
Key Factors to Consider When Choosing Drilling Tools
Selecting the right rock drilling tools for hydraulic tunneling jumbos requires careful consideration of multiple factors. Making informed choices ensures higher drilling efficiency, longer tool service life, and lower operational costs.
Rock Hardness & Abrasiveness: Matching the tool to rock conditions ensures consistent drilling speed and reduces downtime.
Tunnel Diameter & Drilling Depth: Proper sizing reduces operational delays and improves drilling accuracy, particularly in large tunnels.
Drilling Precision Requirements: Choosing the right tools ensures consistent hole alignment and reduces rework.
Equipment Compatibility: Rock drilling tools must be compatible with the hydraulic tunneling jumbo brand and model: Atlas Copco, Sandvik, Furukawa, and Others. Each machine has specific drill rod connections, shank adapters, and torque/impact requirements. Ensuring compatibility avoids energy loss, premature wear, and equipment damage.
Tool Material & Carbide Grade: Selecting the right material balance ensures long-lasting tools and optimal drilling efficiency.
Conclusion
Selecting the right rock drilling tools is a critical factor in maximizing the efficiency, accuracy, and safety of hydraulic tunneling jumbos. High-quality drill bits, drill rods, shank adapters, and coupling sleeves not only improve penetration rates and hole precision but also extend tool life and reduce operational costs.
Investing in reliable, performance-optimized drilling tools helps minimize downtime, avoid premature wear, and ensure smooth progress in complex tunneling projects. For project managers and contractors, choosing the right tools is a strategic decision that directly impacts productivity and overall project success.
